EP201 is made by impregnated fiberglass cloth with thermal epoxy resin laminate conforming EPGC 201 acc. IEC 60893. High insulation resistance after immersion in water, higher mechanical strength in room temperature and good electrical stability in high humidity.

Application
EP201 is applicable to mechanical, electronic and electrical industries, suitable for insulating structural parts of machinery, electronics and electrical equipment.

Availability
Thickness: 0.2 mm ~ 80 mm, tolerances acc. to IEC 60893.
Dimension: 1020 x 1220 mm, 1220 x 2440 mm.
Color: Green, yellow, black.

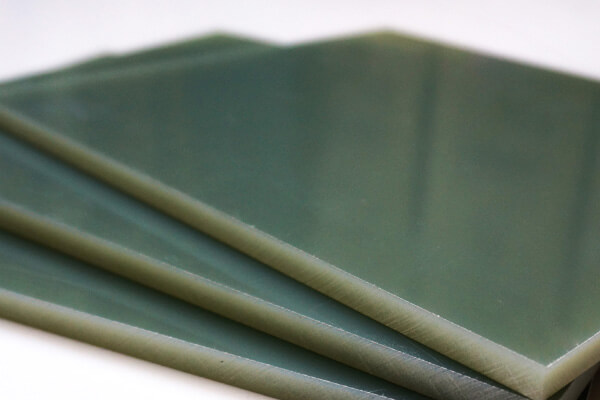

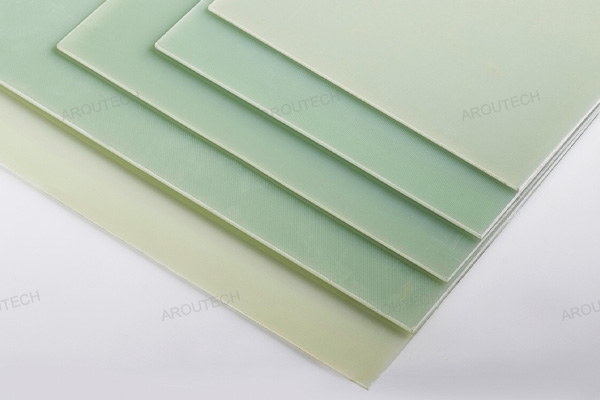

EP202 is made by impregnated fiberglass cloth with thermal epoxy resin laminate conforming EPGC 202 acc. IEC 60893. Flame resistance with high insulation resistance after immersion in water, higher mechanical strength in room temperature and good electrical stability in high humidity.

Application
EP202 is applicable to mechanical, electronic and electrical industries, suitable for insulating structural parts of machinery, electronics and electrical equipment with flame resistance requirement.

Availability
Thickness: 0.2 mm ~ 80 mm, tolerances acc. to IEC 60893.
Dimension: 1020 x 1220 mm, 1220 x 2440 mm.
Color: Green, yellow, black.

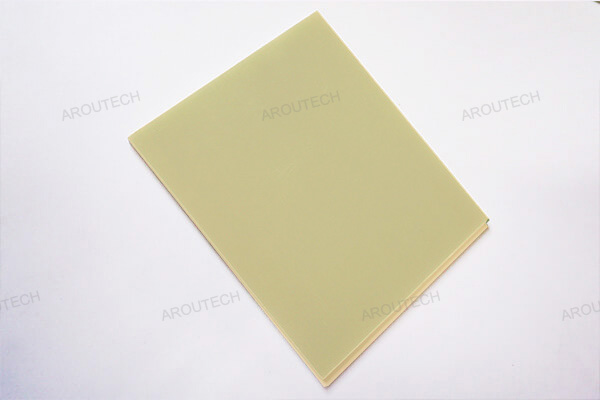

EP203 is made by impregnated fiberglass cloth with thermal epoxy resin laminate conforming EPGC 203 acc. IEC 60893. Better heat resistance with high insulation resistance after immersion in water, higher mechanical strength in high temperature and good electrical stability in high humidity.

Application
EP203 is applicable to mechanical, electronic and electrical industries, suitable for insulating structural parts of machinery, electronics and electrical equipment with high temperature requirement.

Availability
Thickness: 0.2 mm ~ 80 mm, tolerances acc. to IEC 60893.
Dimension: 1020 x 1220 mm, 1220 x 2440 mm.
Color: Green, yellow, black.
